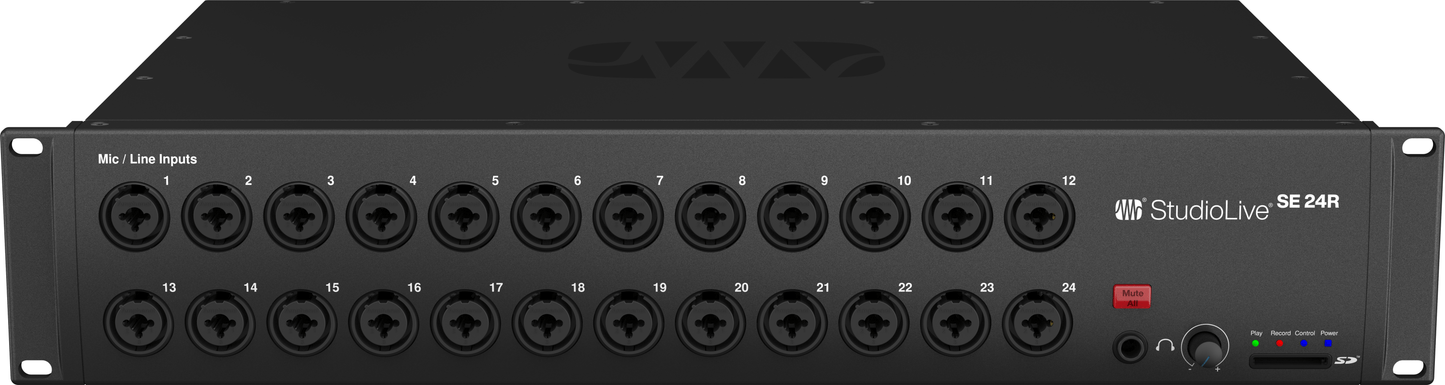

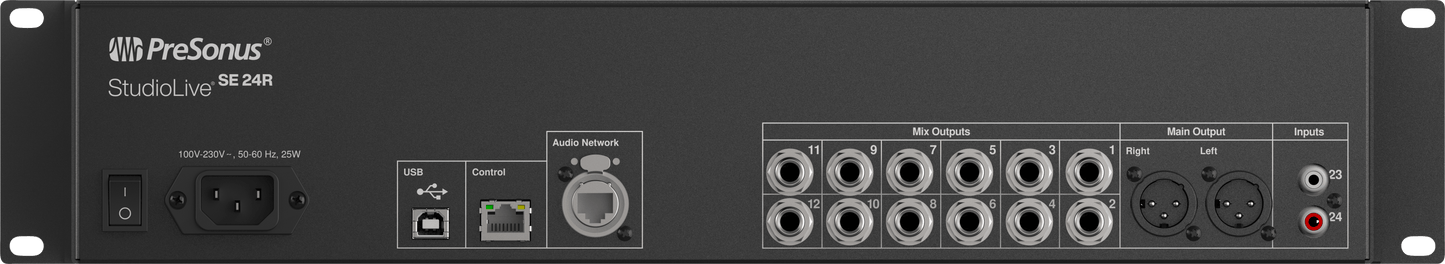

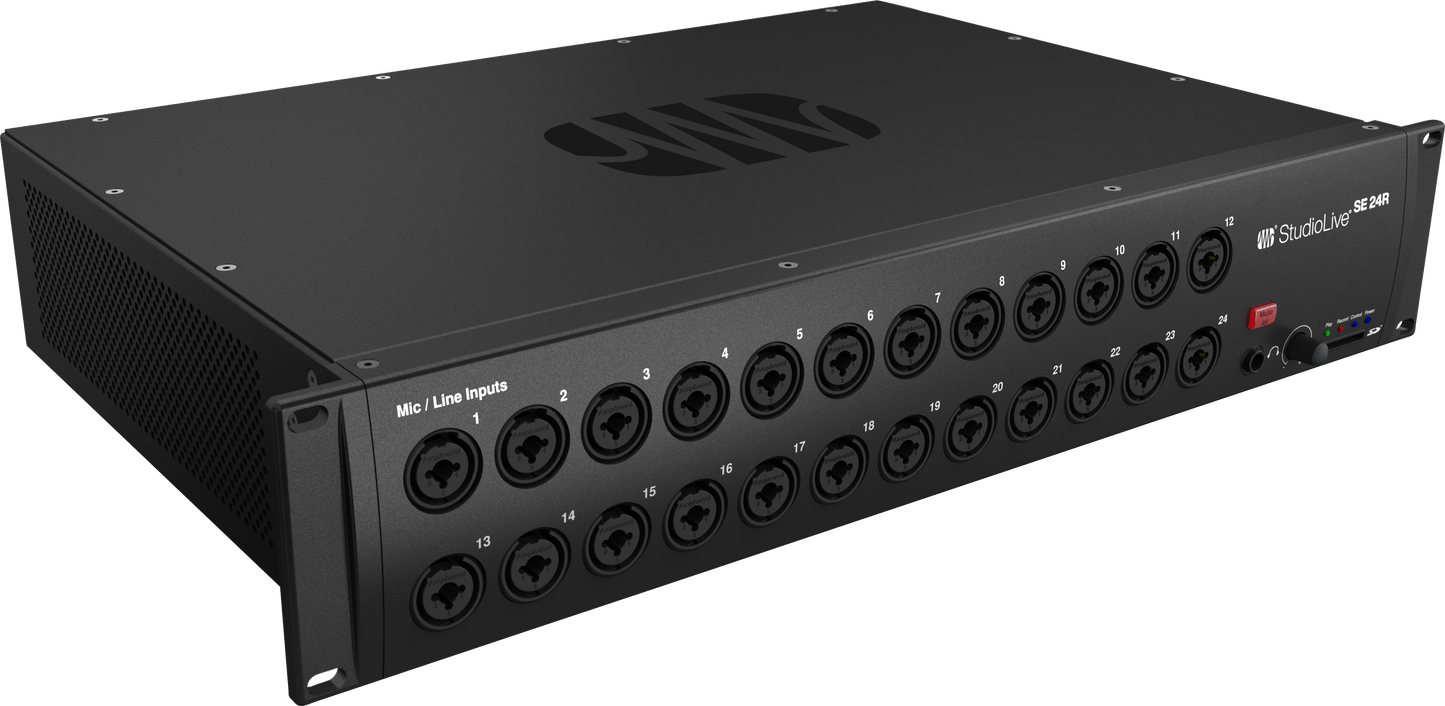

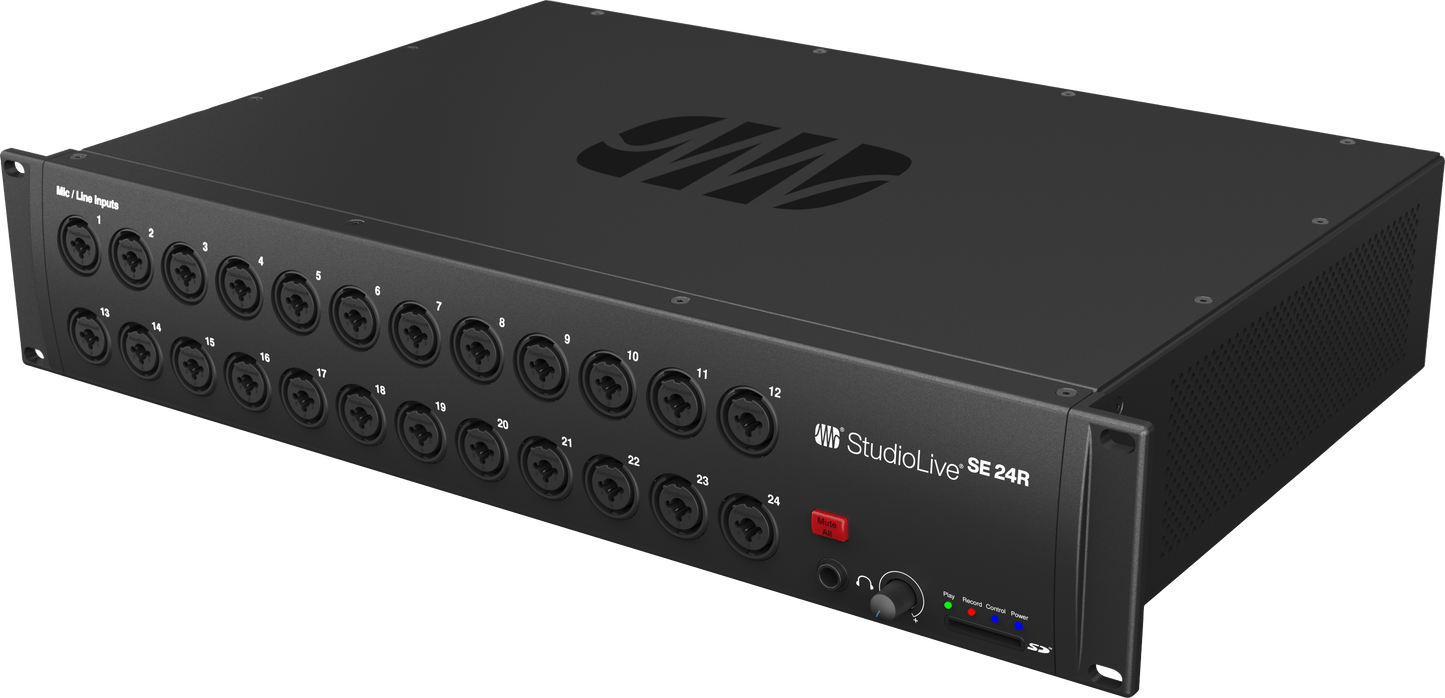

StudioLive® SE 24R Digital Rack Mixer
StudioLive® SE 24R Digital Rack Mixer
Verfügbarkeit für Abholungen konnte nicht geladen werden

Übersicht
40-channel rack mixer with 24 onboard XMAX-R recallable preamps, 16 FlexMixes plus four dedicated subgroups, multitrack USB plus stereo SD recording, and Milan-certified audio networking for live mixing, in-ear monitor rigs, and recording
Der StudioLive SE 24R bietet volle Mischleistung auf nur zwei Höheneinheiten. Mit 24 XMAX-R Vorverstärkern und 16 FlexMixes, vier Subgruppen, vier dedizierten Effektmischungen und 24 DCAs bewältigt dieser Mixer mühelos Projekte mit hoher Kanalanzahl. 64x64 USB-Audio-Interface, SD-Recorder sowie Capture Aufnahmesoftware mit virtuellen Soundchecks für unkomplizierte Aufnahmen und Wiedergabeanwendungen.
Über die Milan-zertifizierte AVB-Netzwerkschnittstelle lässt sich der Mixer per Plug-and-Play mit StudioLive Series III Mixern und Stageboxen verbinden, wobei sich dank der kanalbasierten Quellenauswahl (Analog, USB, SD, AVB) ganz einfach hybride Setups erstellen lassen. Universal Control und QMix-UC ermöglichen Tontechnikern und Musikern die drahtlose Steuerung der Misch- und Monitorfunktionen.
Overview
Merkmale
- 40-Kanal Digitaler Rackmixer mit 24 speicherbaren XMAX-R Vorverstärkern
- 16 FlexMixes, die sich als Aux-, Subgruppen oder Matrix-Mischungen konfigurieren lassen
- 4 dedizierte Subgruppen und 4 Effektmischungen mit Stereo-Returns
- 24 DCA-Gruppen für erweiterte Mixer-Steuerung
- Durchgängig bidirektionales 64x64 USB 2.0 Audio-Interface
- Integrierter Stereo-SD-Recorder
- Umfassende Integration mit virtuellen Soundchecks in der Capture Aufnahmesoftware
- Milan-zertifizierte AVB-Netzwerkschnittstelle für StudioLive Series III Systeme
- Kanalbasierte Quellenauswahl (Analog, USB, SD, AVB)
- Universal Control für Remote-Mischungen und als Offline-Editor
- QMix-UC Personal Monitor Mixer
- Einsetzbar als Standalone-Mixer, Monitormischer oder Stagebox
- Inklusive Dauerlizenz für Fender Studio Pro
Downloads
Das Gesuchte nicht gefunden?
Melde dich bei deinem my.presonus.com-Konto an.
- StudioLive® Series III 24R Digital Rack Mixer Firmware v3.3.0.109659
- Studio One Remote Installer v1.2 (Android)
- Capture 2 v2.4.0.50756 (Mac)
- Capture 2 v2.4.0.50756 (Windows)
- Capture v3.0.0.51747 (Mac)
- Capture v3.0.0.51747 (Windows)
- Capture v3.0.1.52030 (Mac)
- Need an older version? Click here
Das Gesuchte nicht gefunden?
Melde dich bei deinem my.presonus.com-Konto an.
Highlights
DIE LEISTUNG EINES GROSSFORMATIGEN MISCHPULTS
40 Mischkanäle mit vielseitigen FlexMixes, Subgruppen, Effektmischungen und DCA-Routing
ERWEITERTE ROUTINGOPTIONEN
Die perfekte Lösung für Monitor- oder Broadcast-Anwendungen sowie Festinstallationen.
NAHTLOSE AUFNAHMEOPTIONEN
Das 64x64 USB-Audio-Interface, der Stereo-SD-Recorder und die nahtlose Integration mit virtuellen Soundchecks in der Capture Aufnahmesoftware sorgen für Zeitersparnis in jeder Phase der Produktion.
NETZWERKFÄHIG – KABELGEBUNDEN UND DRAHTLOS
Milan-zertifizierte AVB-Netzwerkschnittstelle sowie Universal Control und QMix-UC für moderne Workflows.
INTEGRATION IN FENDER STUDIO PRO
Die umfassende Integration in Fender Studio Pro ermöglicht einfache Aufnahmen, die direkte Steuerung der Preamps und das nahtlose Umschalten zwischen integrierten Effekten und Fat Channel XT Plug-Ins.
Spezifikationen
Headphone Jack
1/4" TRS Active Stereo
Phantom Power
+48 VDC (±2 VDC)
Power Consumption
35W (Continuous)
Voltage
230V EUR
VoltageRequirements
100-230 VAC, 50-60 Hz
Color
Black
Product Name
StudioLive® SE 24R Digital Rack Mixer, Black, EU
Series
StudioLive®
Digital Audio AVB Audio Network Ports
Locking XLR, Ethernet
Digital Audio Network Control Port
RJ-45
Digital Audio USB Recording Port
USB 2.0, Type-B
Line Input Connection Type
RCA Female, Unbalanced (Stereo Pair)
Line Inputs Maximum Level
+12 dBu, ±0.5 dBu
Microphone Input Connection Type
Combo Locking XLR Mic - 1/4” TRS Line
Microphone Preamp Common Mode Rejection Ratio
65 dB (1 kHz at Unity Gain)
Microphone Preamp Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Gain Control Range
0 dB to 60 dB (±1 dB)
Microphone Preamp Input Impedance
1 kΩ
Microphone Preamp Maximum Input Level
=+12 dBu (Unity Gain)
Microphone Preamp Signal To Noise Ratio
94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Microphone Preamp Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Media Storage Capacity
SD Card: 2 GB; SDHC Card: 32 GB
Product Depth
12" (305mm)
Product Height
3.5” (90 mm)
Product Height/Length
3.5” (90 mm)
Product Weight
10.8 lbs. (4.9 kg)
Product Width
19" (483mm)
Digital Audio Internal Processing
32-bit, floating point
Power Cable
IEC
Recommended Ambient Operating Temperature
0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
Recording File Format
Stereo WAV
Supported Media Format
FAT16 Formatted SD™ Card, FAT32 Formatted SDHC™ Card
Supported Sample Rates
48 kHz, 44.1 kHz
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/-0.5 dB
Headphone Outputs Maximum Output
100 mW/ch. @ 60Ω Load
Headphone Outputs Signal To Noise Ratio
96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Headphone Outputs Total Harmonic Distortion
0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Line Outputs Connection Type
1/4" TRS, Balanced
Line Outputs Maximum Output Level
=+18 dBu, ±0.5 dBu
Line Outputs Output Impedance
100 Ohms
XLR Outputs Maximum Output Level
=+24 dBu, ±0.5 dBu
XLR Outputs Output Impedance
100 Ohms
Crosstalk (Adjacent Channels)
-87 dB (Reference = +4 dBu, 20 Hz-20 kHz, Unweighted)
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
Digital Audio Reference Level For Zero dBFS
=+18 dBu
Digital Audio Total System Latency
1.9 ms (local routing, analog in-analog out, all processing active)
SD Recorder Bit Depth
Recording: 24 Bit, Playback: 16 or 24 Bit
SD Recorder Sampling Rate
44.1 or 48 kHz
