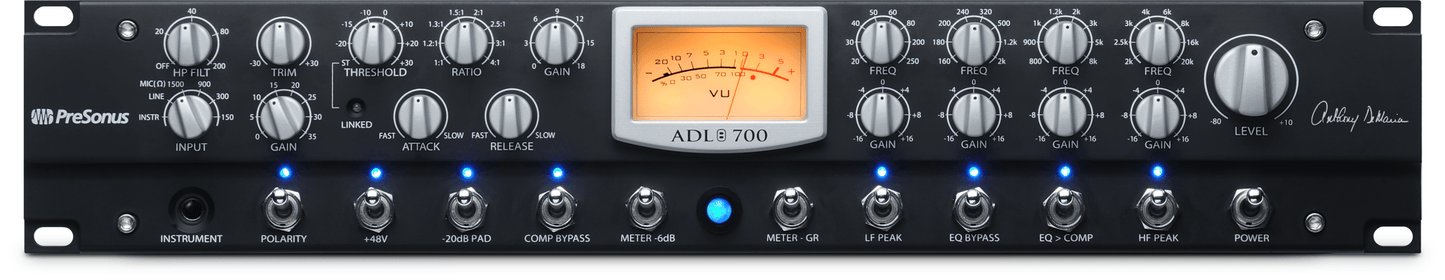

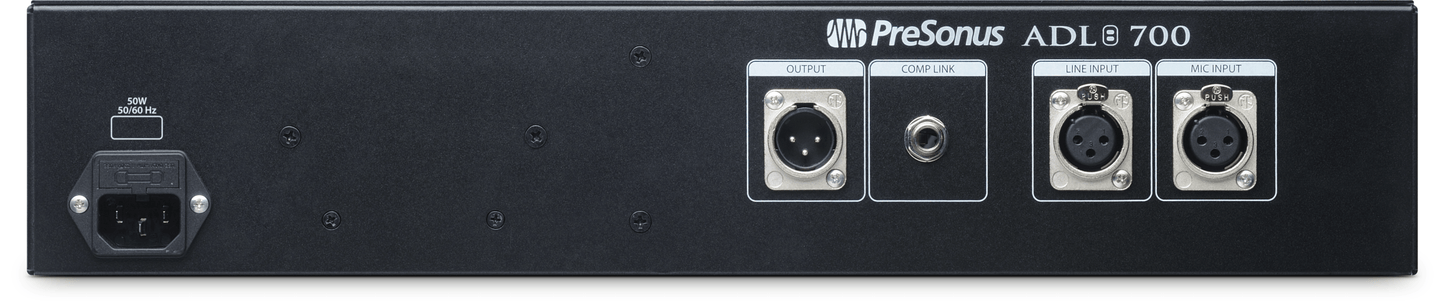

ADL 700

ADL 700

Vollständige Details anzeigen

ADL 700

      Übersicht

      1-Channel High-Voltage Tube Channel Strip

      The ADL 700 channel strip combines a single-channel version of the award-winning ADL 600 Class A tube preamplifier with one 12AT7 and two 6922 vacuum tubes; a fully variable, FET compressor; and a four-band semi-parametric equalizer. This high-end, 2U rack-mount unit provides separate, balanced XLR mic, balanced XLR line, and 1/4” TS instrument inputs with Source Select and a balanced XLR output and includes phantom power, a -20 dB pad, and polarity reverse.

      Overview

      Merkmale

      • High-voltage, all-tube, Class A, dual-transformer design with one 12AT7 and two 6922 vacuum tubes
      • Fully variable FET compressor/limiter with attack, release, threshold, ratio, makeup gain, and stereo link
      • Four band semi-parametric equalizer
      • Microphone, Instrument and Line inputs with Source Select
      • Ultra Low Noise (-100 dB S/N ratio)
      • 48V phantom power, polarity invert, and -20 dB pad
      • High-voltage, all-tube, Class A, dual-transformer design with one 12AT7 and two 6922 vacuum tubes
      • Fully variable FET compressor with attack, release, threshold, ratio, makeup gain, and stereo link
      • Four-band, semi-parametric EQ
      • Variable highpass filter
      • Selectable microphone input impedance
      • Switched Gain and variable Fine Trim controls
      • Microphone, instrument, and line inputs with Source Select
      • Ultra-low noise (-100 dB S/N ratio) and high gain (>73 dB gain)
      • 48V phantom power, polarity invert, and -20 dB pad
      • Dual-mode analog VU metering (output and gain reduction)
      • 2U rack-mount

      Downloads

      • Quotes and Raves - English
      • Tech Sheet - English
      • Owner's Manual - English
      • 2-Year Limited Non-Transferable Warranty (Multilingual)
